The XSZ zoom tube is a versatile accessory that is primarily designed for use with a CCD camera. It allows the user to "transfer" images onto a monitor for greater emphasis and detail, while allowing others to view the images, with its wide working distance capability. This high-resolution system accommodates nearly all-specific requirements for magnification and field of view. It can be utilized in education, industry, R&D, science, and a wide variety of other applications that require clear and precise magnification.
The XSZ single zoom tube is the latest design in high quality optical equipment. It may be used in any of our stands and fits on every arm. Designed as a modular system, with all metal construction. A number of auxiliary lenses and photo eyepieces may also be used to suit nearly every application. The XSZ combines user friendliness with versatility, and provides the user with ease of handling to gain optimum results.

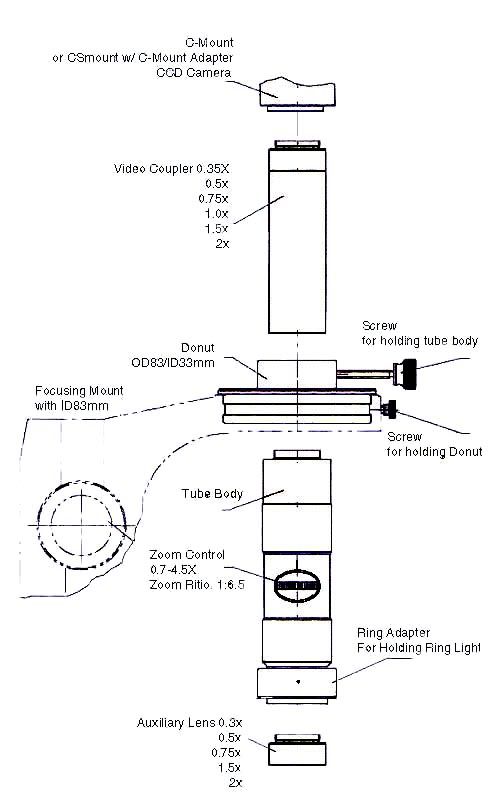

A variety of Stands and Illuminations are available, the Photo Eyepiece outside diameter 33mm, we provide a Donut to hold the Photo Eyepiece and the scope body, this allows it to be put on a Stand with 83mm ring holder likes Universal Arm or Focusing Mount. When a Ring Light is used, a Ring Adapter is fixed on a scope body for holding the Ring Light.
System includes:(System don't come with CCD Camera or Digital Camera)
Main Body (#1411):
Zoom range: .7x-4.5x
Total optical magnification range: 0.735x-18x.
Working Distance: 108mm (Main Body)
Photo Eyepiece:
#2431 0.35X
Auxiliary Lens:
#2232 0.5X
Donut (# 4222): ID33mm, OD83mm
Stand: Boom Stand with Universal Arm
illumination:150W Fiber Optic illuminator with Ring Light or Fiber Optic illuminator with Double Pipes
|
