SZT Trinocular Microscope on Boom Stand with 9.0MP Camera and Ring Light | SZT Trinocular Microscope on Boom Stand with 9.0MP Camera and Ring Light |
If choose to add WF10X or WF20X Reticle, this how it look like.

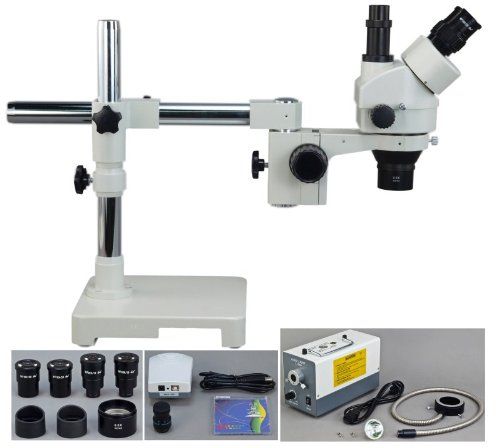

If you choose Boom Stand, this how it look like

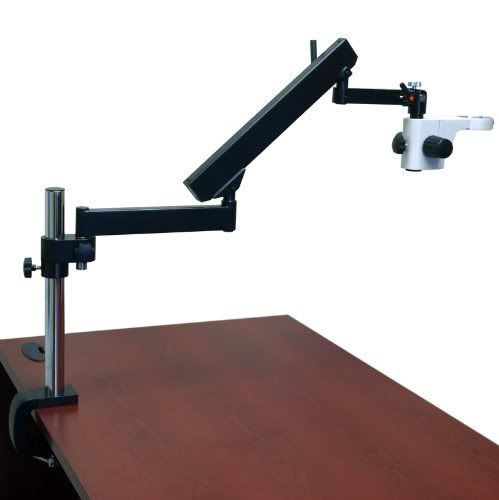

If you choose Articulating Arm on Table Clamp, this how it look like
If you choose Articulating Arm on Post Table Clamp, this how it look like
Features:
- Plug and see, no special
knowledge needed
- High quality optical glass
elements
- High definition images
- Zoom lenses 3.5x~90x, crystal
clear at any point
- Extremely long working distance
and field of view with 0.5x auxiliary lens

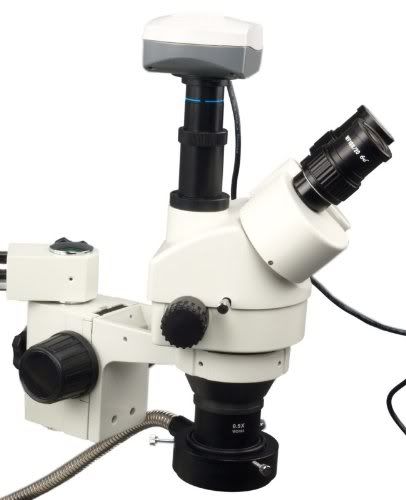

- 45°inclined 360°rotatable trinocular head
- Body holder can be inclined
0-90°
- Sharp stereo erect images over
a super wide field view
- Two ocular tubes have diopter adjustment
- Adjustable inter-pupillary distance to fit anyone's eyes

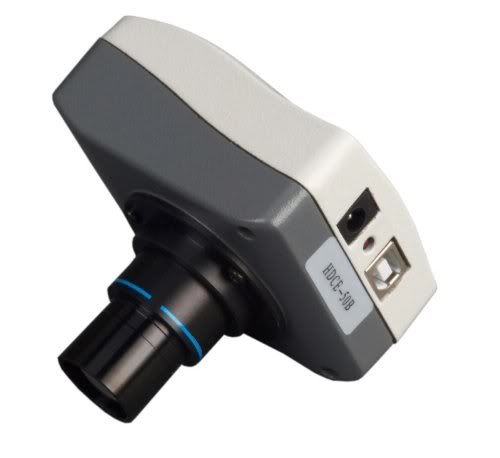

- 3488 x 2616 pixels (9.0MP) USB
camera included, capture true color video or image on your computer
- Compatible with Windows
2000/XP/Vista/Windows 7 32/64-bit
- High brightness cold
illumination: with ring providing
illumination without heat radiation to specimen
- Advanced power supply design
providing a smooth brightness adjustment
- Variable light intensity
- Sturdy base and boom stand protect
the body and allow large working space
- Manufacturer in business 30+
years
Specifications:
- Model: SZT3413PK3
- Head: 45°Inclined 360°rotatable
trinocular
- Eyepieces: high eyepoint wide field WF10X/20 and WF20X/10
- Objective zoom: 0.7x-4.5x
- Auxiliary objective lens: 0.5x
- Total magnification: 3.5x~90x
- Two ocular tubes have diopter adjustment ±
- Adjustable interpupillary
distance: (55~75mm)
- A lever to swap the view
between the photo tube and the left ocular tube
- Long working distance: 100mm
(3-15/16") without 0.5x auxiliary lens and 165mm (6-1/2")
with 0.5x auxiliary lens
- Field of view: max 30mm
(1-3/16") without 0.5x auxiliary lens and max 60mm (2-3/8") with
0.5x auxiliary lens
- Diameter of ring light or
auxiliary lens mount: 48mm female thread
- Focusing adjustment range:
(50mm) 2"
- Ring head fiber flexible pipe
with length of 3 ft (91cm) long with extra 48mm thread ring adapter

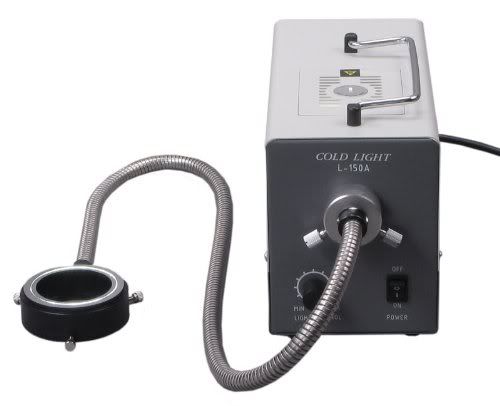

- 150W Fiber Optic illuminator
with switchable 115v or 230v (internationally)
- Resolution: true color 3488 x
2616 pixels
- Software compatibility of
camera: Windows 2000/XP/Vista/Windows 7 32/64-bit
- USB cable included
- Software: live viewing, video
recording, image capturing, measurement, and etc.
- Base size: 9 " x 9"
(23cm x 23cm)
- Net weight: 44.2 lbs (20 kg)
Weight:
- Total shipping weight: 53 lbs
(24 kg)
Packing List:
- Trinocular stereo zoom microscope
- A pair of WF10X/20 eyepieces
- A pair of WF20X/10 eyepieces
- 0.5x auxiliary lens
- A pair of rubber eyeshields
- 150W cold illumination system
- Ring head fiber pipe 3 ft in
length
- 48 mm thread ring light adapter
- Power cord (US and Canada
style)
- Spare bulb 21V/150W
- A full set of universal boom
stand with rack and pinion focus adjustment
- 9.0MP USB camera
- 0.45X reduction lens
- CD (camera drive and software)
- USB cable
|
|
