XTS series Stereo Zoom Microscope has a side mount zoom control system, it is easy to operate, perfect for use with bonders and prober arms. It provides excellent 3D images with high resolution. Once brought in focus, images remains clear throughout whole zoom range, it has large field of view, long working distance, and big depth of field, a wide variety of optical lenses and stands are available. Designed as a modular system, with all metal construction. It widely used in the various applications, such as assembly and inspection industries, educational clinical and research purposes. The microscope come with standard supper wide field, high eye point WF10X Eyepiece, enable observation over a wide area and are convenient for operators who wear glasses.
OPTICAL SPECIFICATIONS
Auxiliary Lens |
Eyepiece |
Magnification |
Field
of View |
Working
Distance |
0.3x |
WF5X (24mm) |
1.05-6.75x |
114.3-17.8mm |
314m |
| WF10x(22mm) |
2.1-13.5x |
105-16.3mm |
| WF10x(19mm) |
2.1-13.5x |
90.5-14.8mm |
| WF15x(16mm) |
3.2-20.3x |
76.2-11.9mm |
| WF20x(11.5mm) |
4.2-27x |
55-8.5mm |
| WF25x(9mm) |
5.3-33.8x |
43-6.7mm |
| |
0.5x |
WF5X (24mm) |
1.75-11.25x |
68.6-10.7mm |
189mm |
| WF10x(22mm) |
3.5-22.5x |
63-9.8mm |
| WF10x(19mm) |
3.5-22.5x |
54.3-8.9mm |
| WF15x(16mm) |
5.3-33.8x |
45.7-7.1mm |
| WF20x(11.5mm) |
7-45x |
33-5.1mm |
| WF25x(9mm) |
8.8-56.3x |
26-4mm |
| |
0.75x |
WF5X (24mm) |
2.63-16.9x |
45.7-7.1mm |
122mm |
| WF10x(22mm) |
5.3-33.8x |
41.9-6.5mm |
| WF10x(19mm) |
5.3-33.8x |
36.2-5.6mm |
| WF15x(16mm) |
7.9-50.6x |
30.5-4.7mm |
| WF20x(11.5mm) |
10.5-67.5x |
22-3.4mm |
| WF25x(9mm) |
13.1-84.4x |
17.2-2.7mm |
| |
1x (fixed) |
WF5X (24mm) |
3.5-22.5x |
34.3mm-5.3mm |
108mm |
| WF10x(23mm) |
7-45x |
31.4-4.9mm |
| WF10x(19mm) |
7-45x |
27.1-4.2mm |
| WF15x(16mm) |
10.5-67.5x |
22.9-3.6mm |
| WF20x(11.5mm) |
14-90x |
16.4-2.6mm |
| WF25x(9mm) |
17.5-112.5x |
13-2mm |
| |
1.5x |
WF5X (24mm) |
5.25-33.8x |
22.9-3.6mm |
39mm |
| WF10x(22mm) |
10.5-67.5x |
21-3.3mm |
| WF10x(19mm) |
10.5-67.5x |
18.1-2.8mm |
| WF15x(16mm) |
15.8-101.3x |
15.2-2.4mm |
| WF20x(11.5mm) |
21-135x |
11-1.7mm |
| WF25x(9mm) |
26.3-168.8x |
8.6-1.3mm |
| |
2x |
WF5X (24mm) |
7-45x |
17.1-2.7mm |
35mm |
| WF10x(22mm) |
14-90x |
15.7-2.4mm |
| WF10x(19mm) |
14-90x |
13.6-2.1mm |
| WF15x(16mm) |
21-135x |
11.4-1.8mm |
| WF20x(11.5mm) |
28-180x |
8.2-1.3mm |
| WF25x(9mm) |
35-225x |
6.5-1mm |
|
|  XTS Stereo Zoom Microscope on Pole Stand(no Light Stand)
SPECIFICATION:
| XTS Binocular Body with WF10X High Eye
Point Eyepiece and Eyecup |
| Zoom Range: 0.7x-4.5x |
| Total Magnification: 7-45x standard |
| Working Distance: 108mm |
| Binocular Body: Can be rotated a full
360 degree. |
Pole Stand:
| Base Dimension: 240x180x34mm, the distance
from pole to the plate centerline: 120mm |
| Vertical Post: Dia. 25mm, Main Post 200mm,
with attached extension post 170mm |
| Focusing Mount: The vertical working
distance 80mm(+69, -11mm), the Ring's ID. 83mm for microscope body, ID.
25mm for pole, the centerline to centerline 140mm from ring to Hole. |
With a Locking Ring for vertical stopping.
A black and white plastic plate: Dia. 95mm
With twospring clips for holding the objective on the plate. |

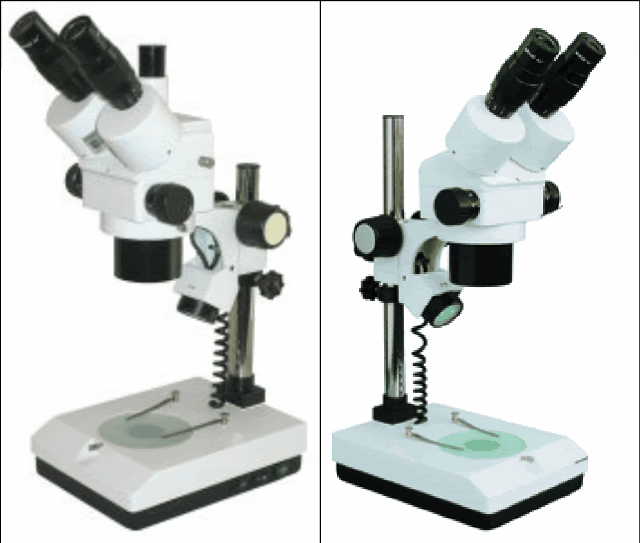

| | |  XTS Stereo Microscope on Pole Stand HF(with Light Stand)
SPECIFICATION:
| XTS Binocular Body with WF10X High Eye
Point Eyepiece and Eyecup |
| Zoom Range: 0.7x-4.5x |
| Total Magnification: 7-45x standard |
| Working Distance: 108mm |
| Field of View: 5.1-33mm standard |
| Interpupillary Distance: adjustable 55-75mm |
| Binocular Tube: inclined 45 degree. |
| Diopter Adjustment: ?/font>5 Diopters |
| Binocular Body: Can be rotated a full
360 degree. |
| Pole Stand with Top Halogen and Bottom
Fluorescent Light |
| Base Dimension: 240x180x60mm |
| Input Power: 110V, Top Halogen: 6V15W,
Bottom Fluorescent 5W |
| Clear Glass Plate:Dia. 95mm |
| Color Filter: With a standard White Filter
for Top and Bottom, Dia. 40mm, the Darker Blue and Bright Blue for option |
| | |  XTS Stereo Zoom Microscope on Boom Stand
SPECIFICATION:
| Stereo Zoom Microscope Binocular Body
with Boom Stand |
| Binocular Body with WF10X High Eye Point
Eyepiece and Eyecups, also include .5x Auxiliary Len. |
| Zoom Range: 0.7x-4.5x |
| Total Magnification: 7-45x standard |
| Working Distance: 108mm |
| Field of View: 5.1-33mm standard |
| Interpupillary Distance: adjustable 55-75mm |
| Binocular/ Tube: inclined 45 degree. |
| Diopter Adjustment: ±5 Diopters |
| Binocular Body: Can be rotated a full
360 degree. |
SB2U Boom Stand:
| Base dimension: 385x260x25mm, the max.
distance from the vertical post to the end of base: 235mm. |
| The larger and heavy base best to help
keep stand more stable. |
| Vertical Post: OD 37mm, main post 380mm |
| A Lock Ring on vertical post for stopping. |
| Horizontal Post: OD. 32mm, Long 530mm.
We have made three grooves in the horizontal post that keeps it from moving,
end of horizontal post with a 5/8'' hole that will fit Universal and Arbor
arms. |
| An Universal Arm be attached, fitting
Universal arm under the 5/8'' hole of the horizontal post, it allows easy
viewing of different angles. Universal Arm (E-Arm): 5/8inch fitting, ID.
of Ring 83mm for microscope body, centerline to centerline 6inch from the
fitting to ring. |
| Vertical working distance 54mm(+26, -28).
|
| | |  XTS Stereo Zoom Microscope on Track Stand HF
XTS Binocular Body with WF10X High Eye Point Eyepiece and Eyecup:
Zoom Range: 0.7x-4.5x
Total Magnification: 7-45x standard
Working Distance: 108mm
Field of View: 5.1-33mm standard
Interpupillary Distance: adjustable 55-75mm
Binocular Tube: inclined 45 degree.
Diopter Adjustment: ? Diopters
Binocular Body: Can be rotated a full 360 degree.
Track Stand with Incident & Transmitted Fluorescent Light
Base Dimension: 480x180x60mm, the distance from track to the plate centerline: 110mm
This stand can be extended to long working distance, Main Track: 160mm, with extended to 203mm,
The focusing distance 65mm(+39, -26mm)
A clear glass plate: Dia. 95mm
With two spring clips for holding the objective.
Input Power: 110V, Top Halogen 6V/15W and Bottom Fluorescent 5W
| | |  Eyepiece , XTS, SM, XTD, SMZ, XTL, SZ7 (30mm)
Eyepiece Diameter: OD for Tube: 30mm
| | |  Auxiliary Lens for XTS, XTST, XTD
Auxiliary Lens for applications requiring different resolution, magnification, working distance, field of view
and depth of view. For XTS Series: Objective inside Diameter 48mm, thread Outside Diameter 52mm
| | |  XTS Binocular Stereo Zoom Microscope Pod
XTS: Binocular (# 1121) with WF10X Eyepiece (# 2110) Zoom Range: 0.7x-4.5x Zoom Ratio: 1:6.5
Total Magnification: 7-45x standard, 2.1-225X with optional lens Working Distance: 108mm (without Auxiliary
Lens), it can be 38-314mm with Optional Auxiliary Lens.
Field of View: 5.1-33mm standard, 1.1-124mm with optional lens Interpupillary Distance: adjustable 55-75mm Binocular Tube: inclined 45 degree. Diopter Adjustment: ? Diopters Binocular Body: Can be rotated a full 360 degree.
Microscope Body ID: 83mm
| |
