Features:

• Model: SMZ1GEM
• For distinguishing genuine & imitation gems and judging production origin
• Ergonomic design; more comfortable to handle
• Offers crisp sharp, high resolution images with bright or dark field illumination
• Zoom ratio 1:6.3
• 15x widefield eyepieces with diopter regulator
• Adjustable interpupillary distance to fit anyone's eyes
• Transmitted halogen illumination
• Adjustable gooseneck rectangular fluorescent lamp
• Flexible LED point light brings light to any angle
• Large working distance of 115mm gives user more operating room
• Metal framework
• Product CE approved

Microscope Head:

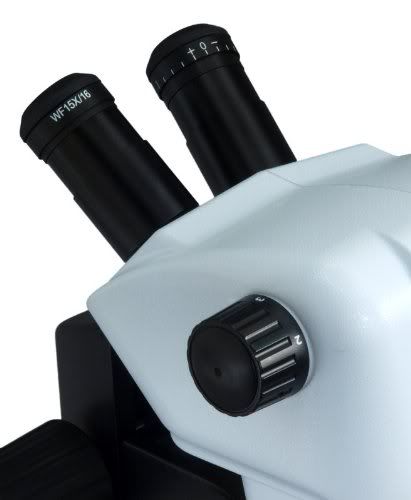

• 45 degrees inclined 360 degrees rotatable binocular head
• Sliding interpupillary distance adjustment: 50-70mm

Magnifications:

• Wide field 15X eyepieces with ;&Phi16mm field of view
• Objective zoom: 0.8X~5X ratio 1:6.3
• Total magnification: 12X~75X (expandable magnification with 20X eyepieces)

Illumination:

• 7W gooseneck fluorescent lamp
• Flexible LED point light
• 6V/20W halogen transmitted illumination

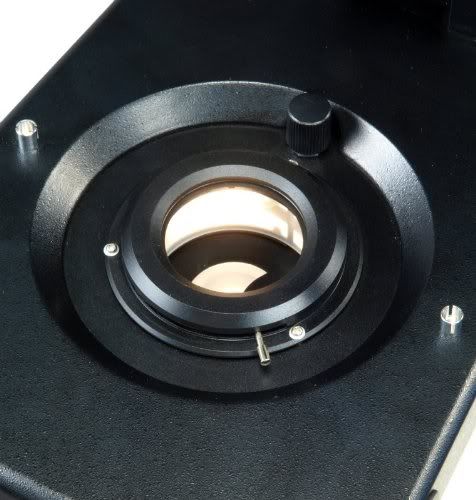

·         Iris diaphragm: 2mm~41mm

·         Bright and darkfield illumination

• Adjustable dark field disk
• Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)

Focusing:

• Focus range : 110mm; suitable for observing different sized gems and samples
• Focusing knobs on both sides
• Tool-free focus knob tension adjustment

Working Distance & Field of view

• Working distance: 115mm
• Field of view: 3.5mm (using 5x objective and 15x eyepiece), 19.5mm (using 0.8x objective and 15x eyepiece)

Stage:

• Gemology stage with clamp fixing holds on either side to choose from
• Quality steel wire clamps

Stand:

• 0 - 325 degrees rotatable base
• Inclinable up to 38 degrees for better comfort and view

Framework:

Metal framework

Dimension and Weight:

• Dimension: 28cm x 28cm x 49cm (11x11x19-1/4 inch)
• Net weight: 8.66kg (19lb 1.5 oz)

Packing List:

• Binocular stereo zoom microscope body
• Gemology microscope stand
• Pair of wide field 15X eyepieces
• Steel wire clamps (tweezers)
• LED point light
• 7W gooseneck fluorescent lamp
• Extra fuses
• Allen key
