Specifications and Features:

• Model: PHASEKIT02

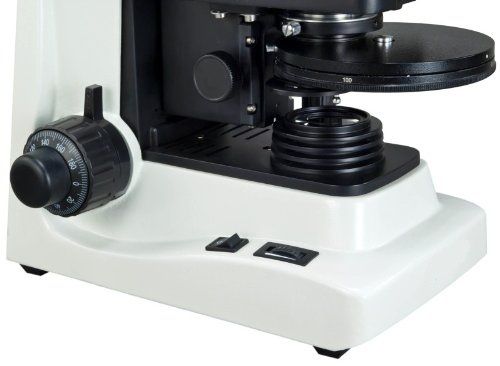

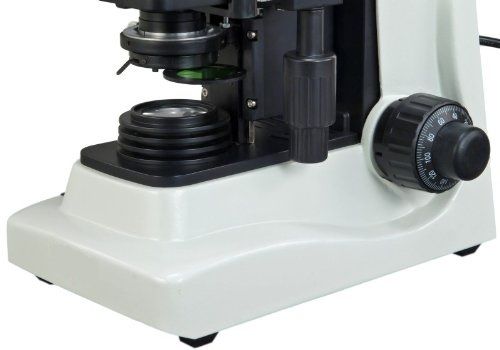

• A complete phase contrast kit can be flexibly equipped with an ordinary biological microscope to be a phase contrast microscope
• Condenser mount size: 37mm in diameter
• Improve the images of transparent and colorless objects, which are difficult to see or invisible with a bright field microscope
• Widely used in clinical, biological research and schools, specially for observing living cells
• Top quality professional optical glass elements
• Product GS and CE approved
• 30+ years Manufacturer in bossiness
• Package dimension: 30.5 cm x 23 cm x 14.5 cm (12" x 9" x 5-11/16")
• Package weight: 1 lb 15 oz (0.87 kg)

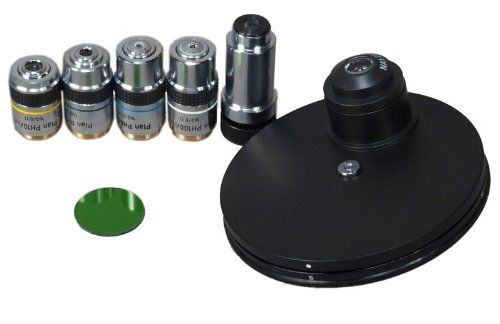

Packing List:

• One centering telescope
• Four plan phase contrast objectives with phase plate
  Plan PH10/0.25, 160/0.17
  Plan PH20/0.40, 160/0.17
  Plan PH40/0.65, 160/0.17
  Plan PH100/1.25, 160/0.17 (oil)

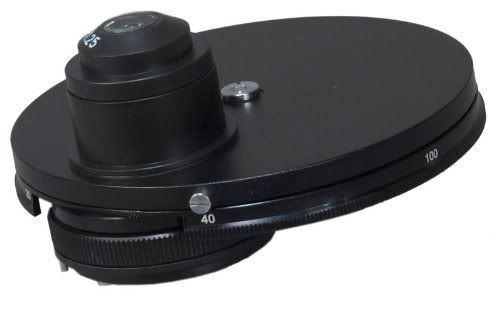

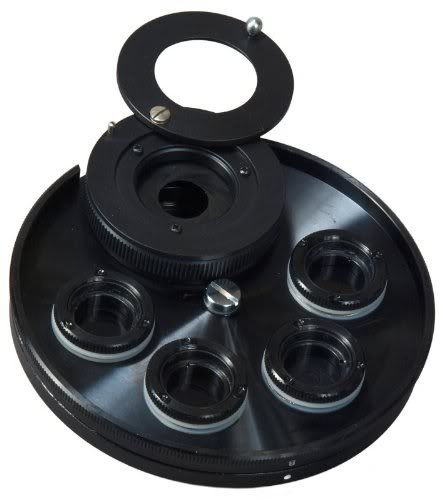

• Substage phase contrast condenser disk, 5 positions:
  1 Bright field condenser: Abbe NA1.25 w/ iris diaphragm and filter holder
  4 Phase contrast condensers: 10X, 20X, 40X, 100X, each can be centered individually
• One green filter
• One screw driver
• One aluminum storage and carry case

Products needed to work with this kit (sold separately)

• Compound microscopes
